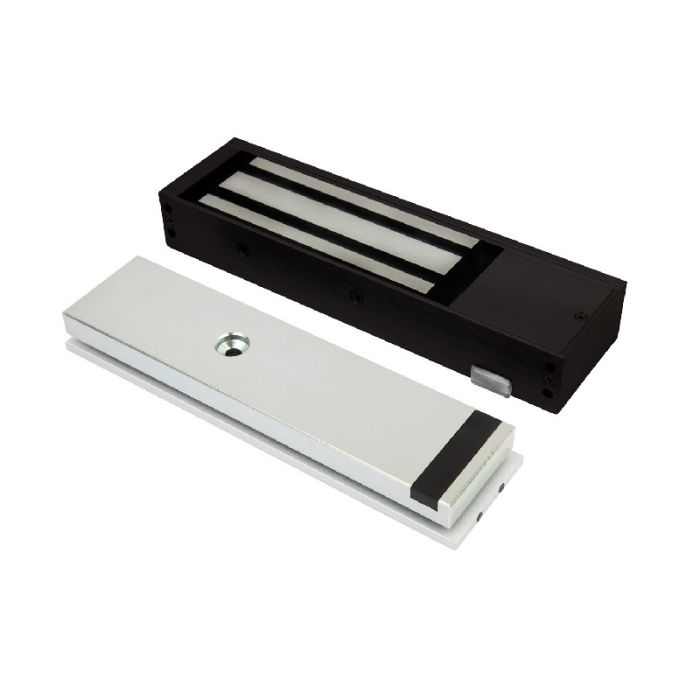

EM5700M-BLK LOX Black Single Monitored Electro Magnetic Lock - 580 kg
The LOX EM5700M-BLK is a black anodised single door monitored electro magnetic lock with monitoring for door and lock status. Black electromagnetic lock with up to 580 kg holding force, dual-voltage 12/24 VDC operation, and a tested cycle rating of 1 million cycles.
Suitable for access control applications requiring monitored lock status and visible status indication. Features an anti-tamper mounting plate and supports approvals where applicable.
Key Features
- Up to 580 kg holding strength supports controlled access on the nominated door type.
- Door and lock status monitoring helps integrators report both door position and lock state.
- Dual-voltage design gives flexibility across 12 VDC and 24 VDC installations.
- High visibility red/green status light assists quick locked or unlocked checks.
- Black anodised body supports coordinated hardware on darker door and frame finishes.
- Catalogue Family:
- LOCKING
- Product Type:
- Locking
- Holding Strength:
- Up to 580 kg, tested to 1 million cycles
- Voltage/Current:
- Dual voltage 12/24 VDC; 12 VDC = 500 mA; 24 VDC = 260 mA
- Monitoring:
- LSS Lock Status Sensor (Hall Effect) and DSS Door Status Sensor (Reed Switch)
- LED Status:
- Red/green status light indicates locked or unlocked state
- Approvals:
- Up to 4 hour fire rated to A.S Standard, CE and C-Tick
- Environmental Range:
- -20 deg C to 60 deg C
- Finish:
- Black anodised body
