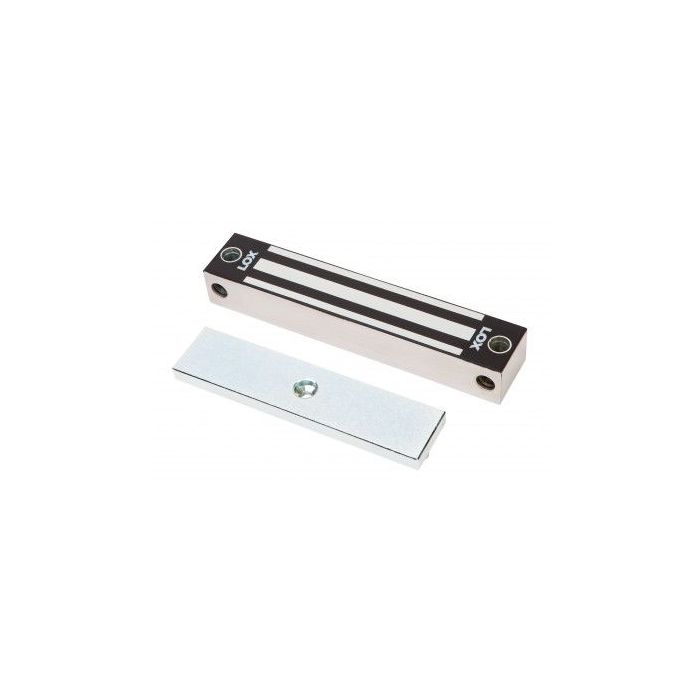

EM4500 LOX Weather Resistant Monitored Mini Gate Magnet - 200 kg
The EM4500 is a LOX weather resistant monitored electromagnetic mini gate magnet with a fully enclosed stainless steel housing. Electromagnetic lock with IP67 protection, dual-voltage 12/24 VDC operation, and a holding force of up to 200 kg.
Suitable for external access control applications, including gates and perimeter entrances. Features a 304 stainless steel enclosure, monitoring function, and a no-residual-magnetism design.
Key Features
- IP67 weather resistant construction supports exposed external locking applications.
- Up to 200 kg holding strength suits the gate magnet role.
- Fully enclosed stainless steel body helps protect the lock in demanding environments.
- Dual fixing arrangement supports front or header mounting flexibility.
- Monitoring output assists access-control systems with lock or door state feedback.
- Catalogue Family:
- LOCKING
- Product Type:
- Locking
- Holding Strength:
- Up to 200 kg
- Voltage/Current:
- 12VDC = 360mA; 24VDC = 180mA
- Approvals:
- CE and C-Tick
- Monitoring:
- Door status sensor (reed switch)
- Environmental Rating:
- IP67; -20 deg. C to 60 deg. C
- Housing:
- Fully enclosed 304 stainless steel body
