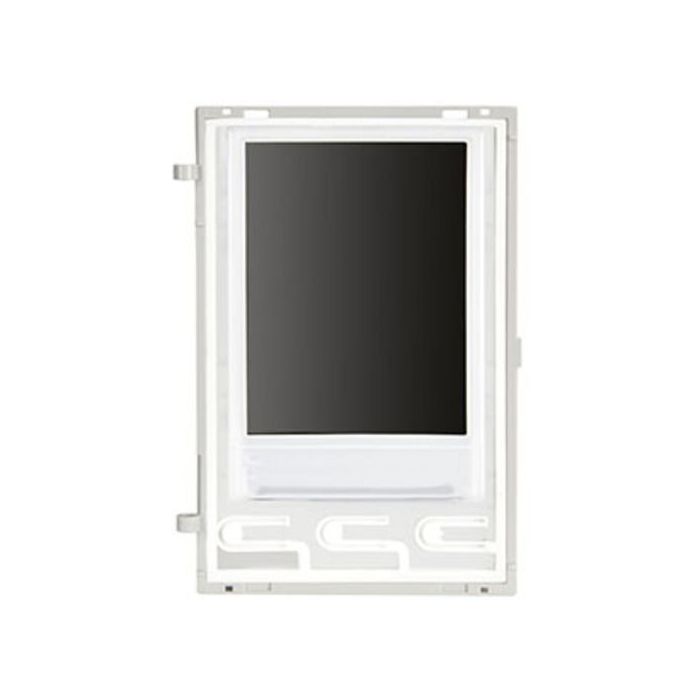

41018 3.5 in Display Module
41018 is a 3.5 in display module for Elvox audio or audio-video entrance-panel modules. It supports calling from the panel contacts list, includes three white LED backlit buttons, and provides visual feedback for operating states such as call in progress and talking.
Designed for Pixel entrance-panel assemblies, it helps larger door entry panels present searchable contacts and installer menu functions in a compact module. It can be powered from the connected audio/video module via harness or from a 5 V DC auxiliary supply when the system design requires it.
Key Features
- Supports contacts-list calling so visitors can find and select indoor units from the panel.
- Three backlit navigation buttons keep operation clear at the entrance point.
- Visual status feedback helps users understand call and conversation progress.
- Installer menu access supports on-panel management of basic configuration parameters.
- IP54 and IK08 Pixel ratings support robust modular panel use.
- Catalogue Family:
- INTERCOM
- Display:
- 3.5 in
- Resolution:
- 320 x 480 pixels
- Colour Depth:
- 65K colours
- Brightness:
- 500 lux
- Buttons:
- 3
- Power Supply:
- 5 V DC from audio/video module or auxiliary terminals
- Maximum Current Draw:
- 220 mA
- Operating Temperature:
- -25 deg C to +55 deg C
- Protection Class:
- IP54
- Impact Rating:
- IK08 for Pixel
- Standards Listed:
- EN 60065, EN 61000-6-1, EN 61000-6-3
- Colour:
- White
- Device Type:
- OTHERS MODULE
- Display Size:
- 3.5 INCH DISPLAY
- Mounting:
- Recessed Mount
- Power:
- 5VDC/ POE(48V)
- Series:
- PIXEL/ HEAVY DUE FILI+
- Solution:
- APARTMENT,COMMERCIAL
- Technology:
- 2-WIRE
- Product Type:
- Intercom
