DS936B Bosch Low Profile Panoramic PIR Detector - Black Housing White Lens

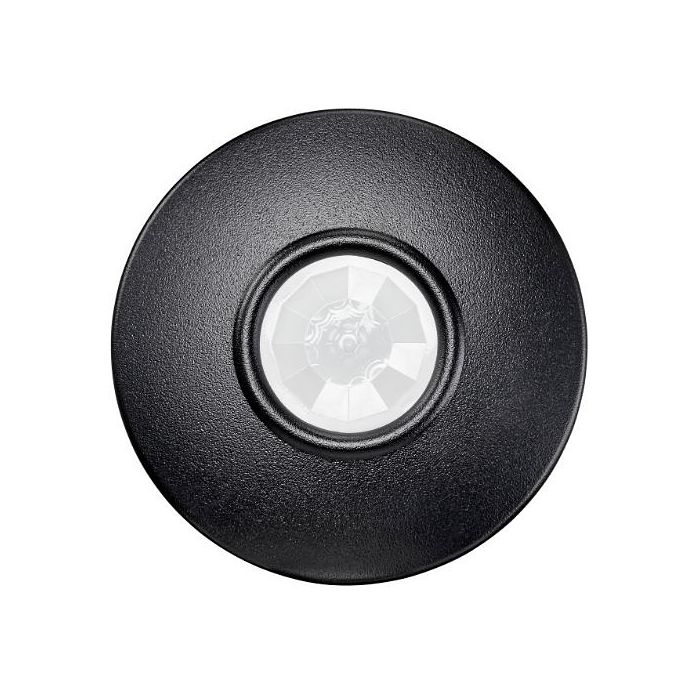

The DS936B is a Bosch low profile panoramic PIR detector with enhanced signal processing and a 360° x 7.5 m coverage pattern. This variant features a black housing with a white lens.
The detector is designed for ceiling mounting and supports surface or semi-flush installation directly to a ceiling or a standard octagonal electrical box. It features a pointable Fresnel lens, selectable processing levels and alarm test features for indoor intrusion detection applications.
Key Features
- Panoramic ceiling coverage with a compact low-profile design
- Selectable signal processing for different installation environments
- Surface and semi-flush mounting options for ceilings or electrical boxes
- Pointable Fresnel lens with internal pattern adjustment
- Visible alarm LED and test pins for operation and disturbance verification
- Catalogue Family:
- ALARM SENSOR
- Product Type:
- Alarm Sensor
- Coverage Pattern:
- 360 deg x 7.5 m
- Variant:
- Black housing and white lens
- Enclosure Material:
- High impact ABS plastic
- Dimensions:
- 3.05 cm x 11.7 cm
- Mounting Height:
- 2 m to 3.6 m
- Mounting Location:
- Surface or semi-flush on ceiling or standard 10 cm octagonal electrical box
- Pattern Pointability:
- +/-15 deg rotational
- Operating Temperature:
- -29 deg C to +49 deg C; 0 deg C to +49 deg C for UL certificated installations
- Power:
- 20 mA at 12 V DC; 10 V DC to 15 V DC
- Alarm Output:
- Normally-closed reed relay, 3.0 W, 125 mA at 28 V DC
- Tamper Output:
- Normally-closed cover activated tamper switch, 125 mA at 28 V DC maximum
- Certifications:
- EN50131-1 Grade 2, CE, UL, CCC, GOST/EAC
