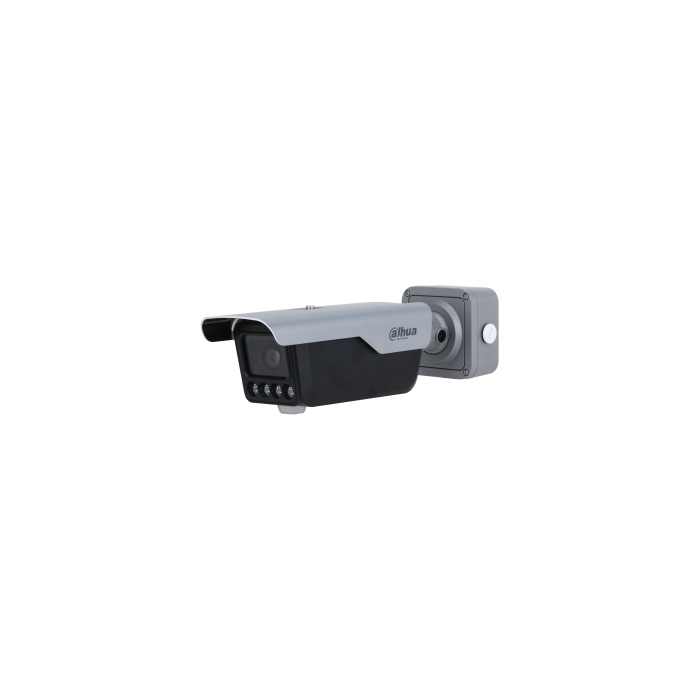

DHI-ITC413-PW4D-Z1 Dahua Access ANPR Camera
The DHI-ITC413-PW4D-Z1 is a Dahua access ANPR camera with a 1/1.8 inch CMOS image sensor, 4MP (2688 x 1520) video resolution, and a motorised vari-focal 2.7 mm to 12 mm lens. It supports H.265, H.264, and MJPEG video compression. The camera features 140 dB WDR, ANPR detection up to 10 m, and video monitoring up to 30 m for the Z1 variant.
The camera features deep learning ANPR, vehicle metadata recognition, a built-in microphone, and a 2 W speaker. It supports memory card storage up to 256 GB. The camera is rated IP67 and IK10 and operates on 12 VDC, 2 A, or PoE IEEE 802.3at Type 2 Class 4.
Key Features
- 4MP video resolution (2688 x 1520) imaging helps capture detailed scene information
- Motorised vari-focal optics support lane and entry-point framing
- ANPR up to 10 m and video monitoring up to 30 m for the Z1 variant helps maintain usable visibility in low-light conditions
- Analytics such as deep learning ANPR with vehicle metadata recognition help reduce review effort by focusing on relevant events
- IP67 and IK10 protection supports outdoor and exposed installations
- Catalogue Family:
- CAMERA
- Model:
- DHI-ITC413-PW4D-Z1
- Product Type:
- Camera
- Image Sensor:
- 1/1.8″ CMOS
- Max Resolution:
- 4MP video resolution (2688 x 1520)
- Lens:
- motorised vari-focal 2.7 mm to 12 mm lens
- Illumination:
- ANPR up to 10 m and video monitoring up to 30 m for the Z1 variant
- WDR:
- 140 dB
- Video Compression:
- H.265, H.264 and MJPEG
- Analytics:
- deep learning ANPR with vehicle metadata recognition
- Audio:
- built-in microphone and 2 W speaker
- Storage:
- card storage support up to 256 GB
- Power Supply:
- 12 VDC, 2 A or PoE 802.3at Type 2 Class 4
- Protection:
- IP67 and IK10
- Operating Temperature:
- -30 °C to +65 °C
- Material:
- Aluminium
- Dimensions:
- 395.0 mm x 120.8 mm x 127.8 mm
