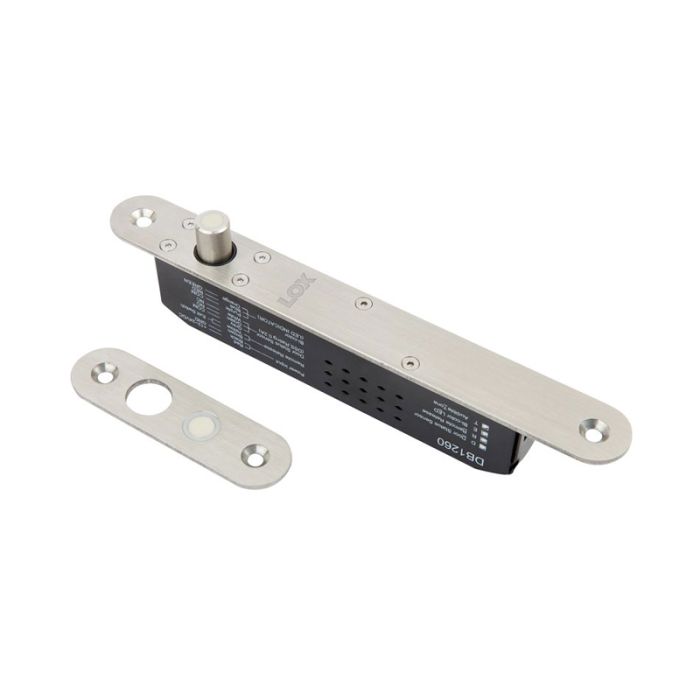

DB1260PTL LOX Mortise Mount Electric Drop Bolt - Power to Lock
The DB1260PTL is a LOX DB1260 mortise mount electric drop bolt in the Power to Lock fail safe version. Drop bolt lock for double-action swing-through doors or as an additional locking device with an electric strike on single-door applications.
Suitable for weather-protected installations. Features a 25 mm faceplate for narrow stile frames, supports vertical or horizontal frame mounting, and is available in separate power-to-lock (PTL) and power-to-open (PTO) versions.
Key Features
- Power to Lock configuration supports fail safe drop bolt operation where specified.
- Narrow 25 mm face plate suits narrow stile frame applications.
- Can be used on double-action doors or as an added lock on single door setups.
- Door status monitoring helps the access-control system confirm door position.
- Built-in timing and control features support controlled relocking behaviour.
- Catalogue Family:
- LOCKING
- Product Type:
- Locking
- Function:
- Power to Lock (fail safe)
- Holding Strength:
- Up to 300 kg
- Voltage/Current:
- 12VDC = 530mA; 24VDC = 260mA
- Approvals:
- Up to 4-hour fire rated to A.S Standard; CE and C-Tick
- Monitoring:
- Door status sensor (reed switch)
- Operational Temperature:
- -20 deg. C to 60 deg. C
