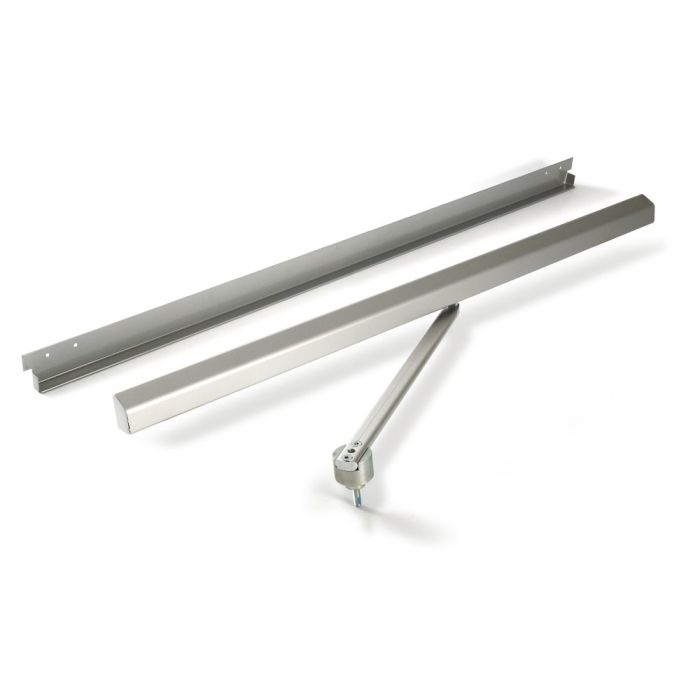

DAB805PLA Ditec Sliding Arm For DAB105 Swing Door Automation
DAB805PLA is a sliding movement arm for the Ditec DAB105 swing door automation system. It is designed for inward-opening doors when viewed from the automation side.
Compatible with the DAB105 electro-mechanical actuator, the sliding arm provides a controlled operator-to-door connection for internal automated swing door installations within the specified system limits.
Key Features
- Sliding arm designed for inward-opening DAB105 swing door installations.
- Provides a controlled operator-to-door connection for compatible door configurations.
- Installation dimensions support accurate positioning of the automation and sliding arm.
- Door-stop adjustment supports smooth door movement during commissioning.
- Compatible with DAB105 system limits for internal automated swing door applications.
- Catalogue Family:
- LOCKING
- Product Type:
- Locking
- Compatible Automation:
- DAB105 electro-mechanical actuator
- Application:
- Doors that open inwards from the automation side
- Maximum Wing Weight:
- 150 kg with DAB805PLA
- Door Wing Width:
- 700-1200 mm
- System Operating Temperature:
- -20 deg C to +45 deg C
- System Degree of Protection:
- IP20 for internal use only
