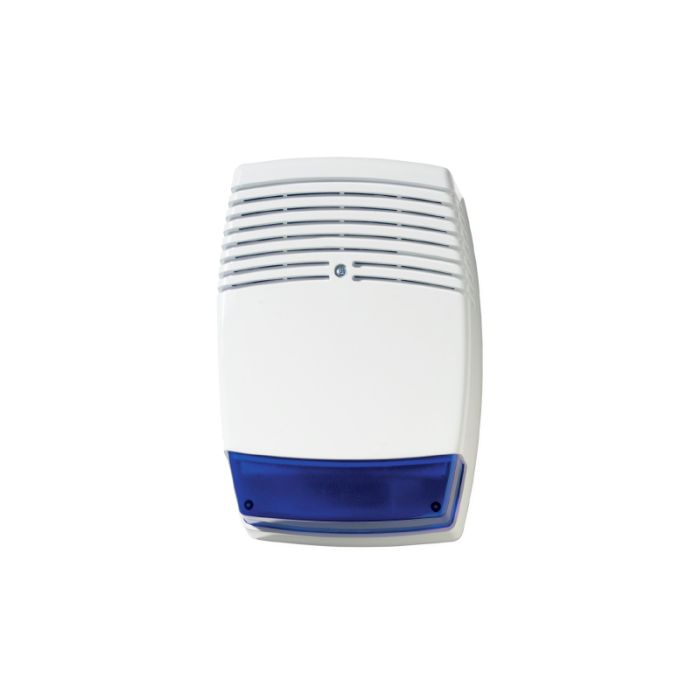

AS614 Self-Activating Outdoor Siren With Blue Beacon
AS614 is a self-activating outdoor siren with a blue beacon, 120 dB sound output at 1 m, a strobe flash light, a steel inner cover with a foam-resistant grid, fully potted electronics, and pry-off/opening tamper detection.
This siren and beacon unit suits external alarm signalling where a weather-exposed sounder and visual flash indicator are required.
Key Features
- Outdoor siren and beacon format supports external alarm signalling
- 120 dB output provides a clear sound level
- Tamper detection helps identify opening or pry-off attempts
- Fully potted electronics support protected siren construction
- Independent beacon and siren hold-off supports alarm system control
- Catalogue Family:
- SCREAMERS & STROBES
- Product Type:
- Screamers & Strobes
- Sound Output:
- 120 dB at 1 m
- Battery Backup:
- Lead acid battery backup up to 7.2 Ah
- Flash Current Consumption:
- 110 mA
- Light Output:
- 100,000 peak lumens
- Flash Frequency:
- 60 flashes/minute
- Operating Voltage:
- 13.0 to 14.2 V
- Current Consumption:
- 600 mA; 25 mA standby
- Dimensions:
- 210 x 300 x 87 mm
- Weight:
- 2667 g
- Material:
- Polycarbonate
- Operating Temperature:
- -25 deg C to +55 deg C
