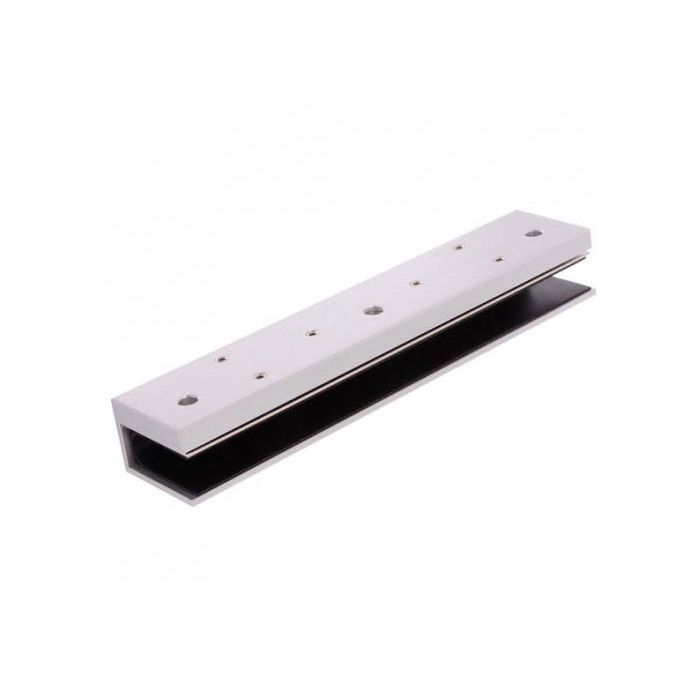

AMGB4-12 LOX U Shape Armature Holder for Glass Doors - 10-12 mm
The LOX AMGB4-12 is a glass-door U shape armature holder for EM3500 and EM3500M electromagnetic lock installations. The glass door armature bracket accessory for compatible EM3500D and EM3500DM electromagnetic lock installations.
It is suitable for fixing the armature plate to 10-12 mm glass doors and is recommended for installations with a 6 mm clearance between the frame and the top of the glass door.
Key Features
- Supports armature mounting on glass doors where standard fixing points are not available.
- Keeps accessory selection aligned with the EM3500 lock family.
- 10-12 mm glass-door scope helps reduce installation guesswork.
- Clearance guidance supports neater planning around the frame and door top.
- Can be matched to single or double EM3500-series installations as shown in the lookup.
- Catalogue Family:
- LOCKING
- Accessory Type:
- U shape armature plate holder
- Compatible Lock Models:
- EM3500 / EM3500M; two holders for EM3500D / EM3500DM
- Door Type:
- 10-12 mm glass door
- Installation Guidance:
- 6 mm clearance recommended between the frame and top of the glass door
- Product Family:
- LOX electromagnetic lock accessories
- Product Type:
- Locking
