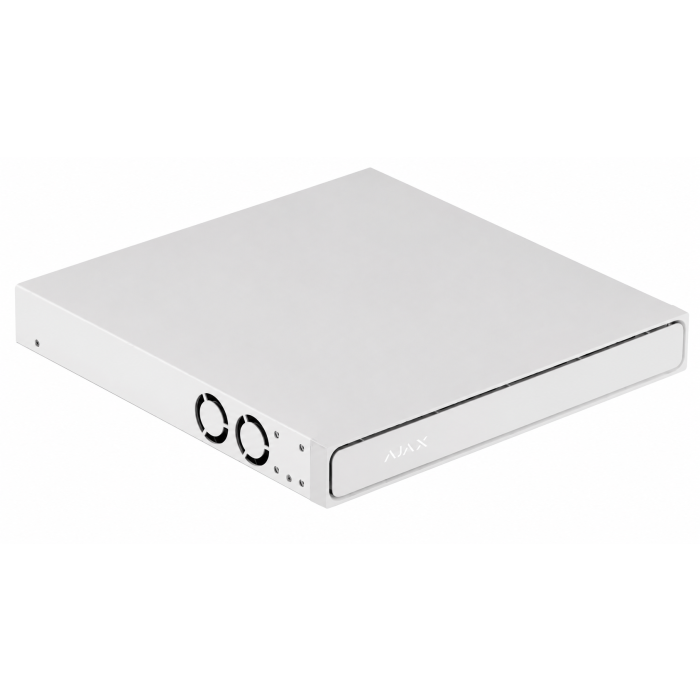

AJANVRH2DAI16PAC16W Ajax NVR H2D16PAC 16 Channel PoE Network Video Recorder
AJANVRH2DAI16PAC16W is an Ajax NVR H2D16PAC 16-channel network video recorder with 4K HDMI output, two hot-swappable HDD bays and up to 16 PoE ports for directly connecting and powering IP cameras.
It supports integration of Ajax video devices and third-party IP cameras into a single video surveillance system, with remote management through Ajax apps or local operation through the built-in VMS. ONVIF/RTSP support, H.265/H.264 decoding and JetSparrow video transmission provide flexible monitoring and archive access.
Key Features
- Sixteen-channel PoE configuration supports larger IP camera deployments from a single recorder.
- Two hot-swappable drive bays allow hard drive replacement without shutting down recording.
- Remote management through Ajax apps and local operation through the built-in VMS.
- ONVIF and RTSP support enables compatibility with Ajax and third-party IP cameras.
- 4K HDMI output supports direct connection to a local display for monitoring and playback.
- Catalogue Family:
- NVR
- Model:
- NVR H2D16PAC (16-ch)
- Product Type:
- NVR
- Channels:
- 16
- PoE Ports:
- Up to 16
- Storage:
- Two hot-swappable HDDs with up to 16 TB capacity; HDDs not included
- HDMI Output:
- 4K
- Ethernet:
- RJ45, up to 1 Gbps
- USB:
- 3 x USB 2.0 Type-A
- Decoding Formats:
- H.265 and H.264
- Bandwidth:
- Up to 160 Mbps incoming and 160 Mbps outgoing
- Power Supply:
- 100-240 V, 50/60 Hz, 5 A
- Power Consumption:
- Up to 320 W
- Dimensions:
- 330 mm x 330 mm x 44 mm
- Weight:
- 3,300 g without hard drives
- Operating Temperature:
- 0 deg C to +50 deg C
- Operating Humidity:
- Up to 75%
- Protection Class:
- IP20
- Compliance Reference:
- NDAA compliant
