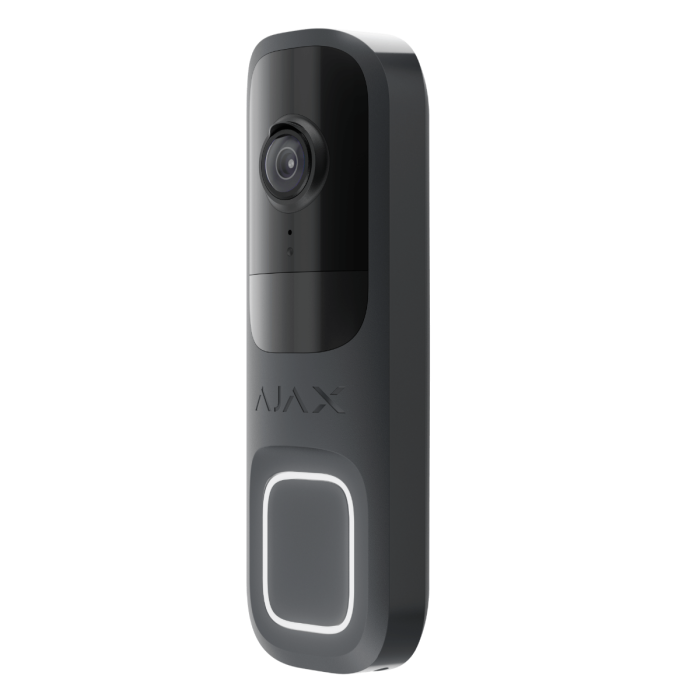

AJADBGRAP Ajax DoorBell 4 MP HDR Wi-Fi Video Doorbell - Graphite
AJADBGRAP is the graphite Ajax DoorBell, an outdoor 4 MP HDR Wi-Fi video doorbell with a built-in PIR sensor, AI-powered object recognition and two-way audio. It combines front-door calling, live video, motion detection and app-based control in one DoorBell device, with a rechargeable backup battery and tamper alarm built into the enclosure.
Designed for Ajax security installations, it uses Wi-Fi as its primary communication channel and can work with supported Ajax hubs for fallback Jeweller and Wings communication. IR illumination up to 6 m, a 155-degree horizontal camera view and SmartBracket installation help cover entry points while keeping setup practical for residential or commercial doorways.
Key Features
- Improves front-door awareness with live video, call notification and real-time conversation from Ajax apps.
- Helps distinguish motion events using AI-powered recognition of people, animals and vehicles.
- Supports clear day and night viewing through HDR imaging, wide-angle coverage and IR illumination up to 6 m.
- Maintains security signalling through hub fallback communication when Wi-Fi is unavailable.
- Simplifies installation with QR pairing, remote configuration and the SmartBracket mounting panel.
- Catalogue Family:
- INTERCOM
- Colour:
- Graphite
- Camera:
- 4 MP CMOS sensor with HDR
- Resolution:
- Up to 2688 x 1520 px
- Viewing Angle:
- 155-degree horizontal; 90-degree vertical
- Motion Detection:
- Up to 4 m using PIR sensor
- IR Illumination:
- Up to 6 m
- Communication:
- 2.4 GHz Wi-Fi plus Jeweller and Wings fallback with compatible Ajax hub
- Power Supply:
- 12-24 V DC or 16-24 V AC 50/60 Hz
- Battery:
- Built-in rechargeable Li-ion 600 mAh
- Protection Class:
- IP54
- Operating Temperature:
- -25 degC to +60 degC
- Dimensions:
- 145 x 47 x 34 mm
- Weight:
- 163 g
- Product Type:
- Intercom
