8P8C Cat5e RJ45 8P8C Modular Plug - 50 Micro-Inch Gold Contacts

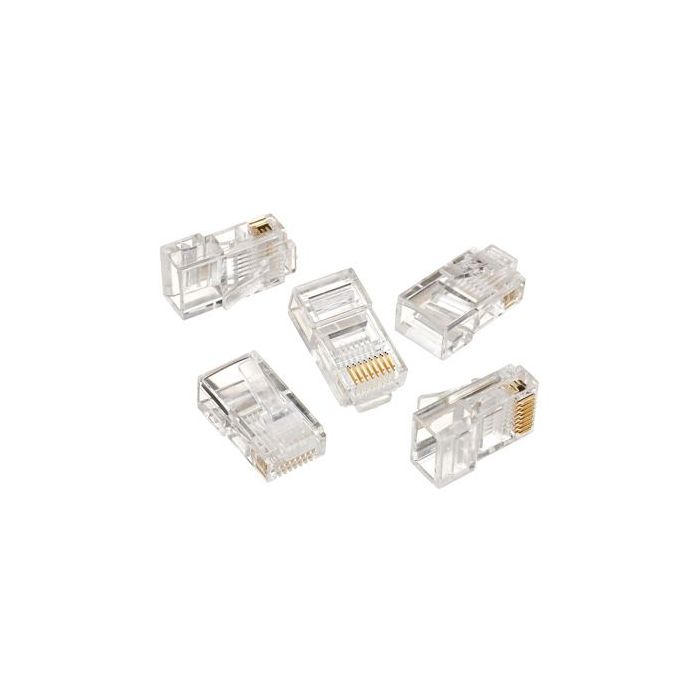

The 8P8C is an unshielded Cat5e RJ45 modular plug for 8P8C Ethernet cable termination. It is suitable for 23 to 26 AWG Cat5e cable with a 4.5 to 6.5 mm outside diameter and features 50 micro-inch gold-plated contacts with a transparent polycarbonate housing.
Designed for structured cabling and network installations, the modular plug supports solid-conductor Cat5e cable termination. It supports PoE Type IV up to 100 W and complies with ANSI/TIA568.2-D Cat5e data-rate requirements for Ethernet and access-control cabling applications.
Key Features
- Supports Cat5e cable terminations for structured cabling applications.
- 50 micro-inch gold-plated contacts provide reliable electrical connectivity.
- Supports PoE Type IV applications up to 100 W.
- Transparent flame-retardant thermoplastic polycarbonate housing.
- Rated for up to 2000 insertion and withdrawal cycles.
- Catalogue Family:
- INSTALLATION TOOLS
- Product Type:
- Installation Tools
- Cable Suitability:
- 23 to 26 AWG; 4.5 to 6.5 mm outside diameter
- Colour:
- Transparent
- Housing Material:
- Polycarbonate
- Contact Material:
- Phosphor bronze nickel plated with 50 micro-inch gold plating
- Operating Temperature:
- -40 deg C to 60 deg C
