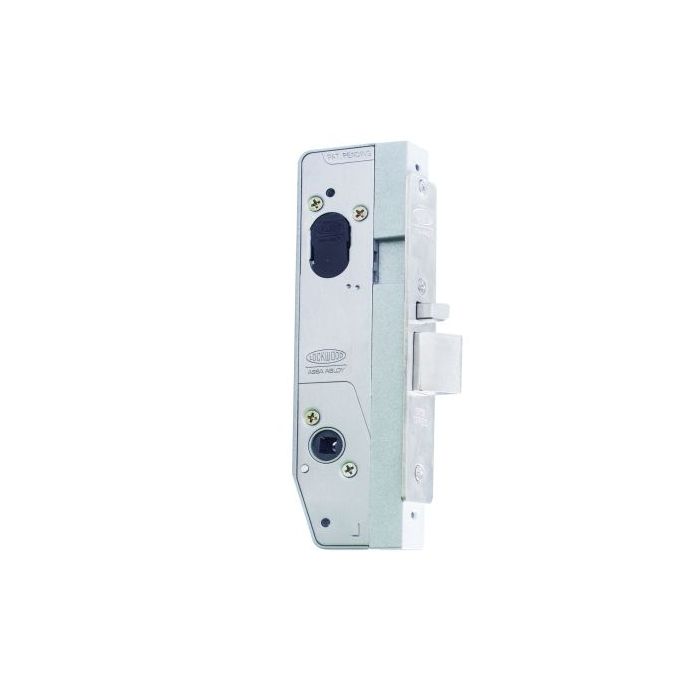

6782ENOHDSS Lockwood 6782 Selector Short Backset Primary Mortice Lock - 38 mm Satin Stainless Steel
The 6782ENOHDSS is a Lockwood 6782 Selector short-backset primary mortice lock with a 38 mm backset and satin stainless steel finish.
It is mainly suited to aluminium door applications, with timber door fixing handled through the specified 3782-TFKIT where required. Features a stainless steel latch bolt, reversible handing, 15 mm bolt throw, oval cylinder cut-out and supplied strike plate. Suitable for door thicknesses from 35 mm to 50 mm and designed for the Lockwood Selector 3780 Series in accordance with AS4145.2.
Key Features
- 38 mm backset supports narrow-stile and aluminium door applications
- Reversible handing assists left or right door preparation from one lock body
- Stainless steel latch and bolt details support robust day-to-day operation
- Anti-lockout and deadlatching functions help maintain practical door security
- Oval cylinder profile keeps the lock aligned with common Lockwood cylinder systems
- Catalogue Family:
- LOCKING
- Backset:
- 38 mm
- Dimensions:
- 194.5 mm H x 25 mm W x 55 mm D
- Finish:
- Satin Stainless Steel (SSS)
- Materials:
- Stainless steel, zinc alloy
- Door Thickness:
- 35 mm to 50 mm
- Bolt Throw:
- 15 mm
- Cylinder Profile:
- Oval
- Handing:
- Reversible
- Warranty:
- 25 years mechanical
- Product Type:
- Locking
