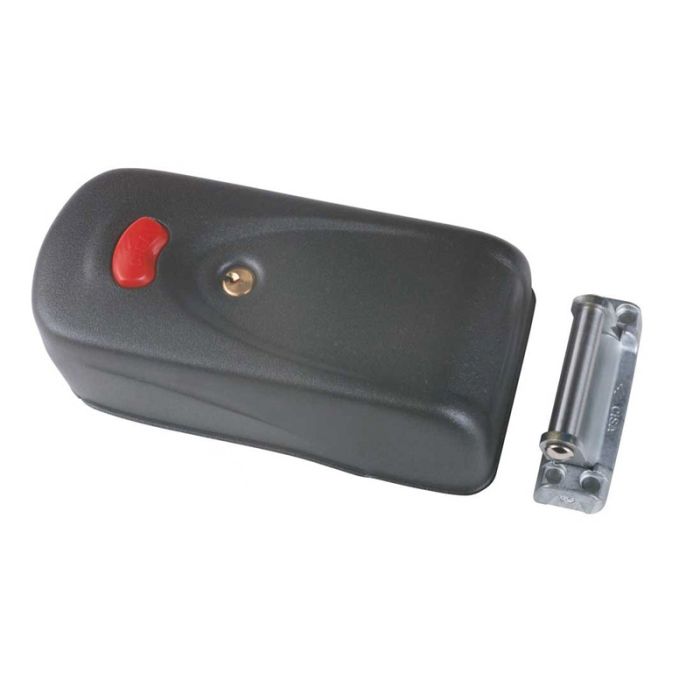

1A731-00 Cisa Elettrika Electric Surface Mount Gate Lock With Push Button - Steel Doors
The 1A731-00 is a Cisa Elettrika electric surface-mount lock for steel doors. It includes back plates for welding the lock and striker and features a rotary hook deadbolt, protective steel casing, stainless steel swinging rod striker, zinc-coated internal components and a 12 V AC power supply.
The non-handed lock has a variable 50 mm to 80 mm backset, an internal push button and a hold-open device. It is designed for surface-mounted gate and door locking installations.
Key Features
- Non-handed design helps simplify stock selection across left and right installations.
- Variable backset gives installers adjustment range from 50 mm to 80 mm.
- Rotary hook deadbolt supports strong mechanical engagement.
- Inner push-button and hold-open functions add practical local control.
- Protective steel casing fully encloses the lock and striker assembly.
- Catalogue Family:
- LOCKING
- Model:
- 1A731-00
- Range:
- Cisa Elettrika
- Product Type:
- Locking
- Backset:
- 50 mm to 80 mm
- Handing:
- Non-handed
- Power Supply:
- 12 V AC
- Unit Weight:
- 2.800 kg
- Variant Features:
- Inner push-button; hold-open device
- Finish:
- Dark grey epoxy powder paint
