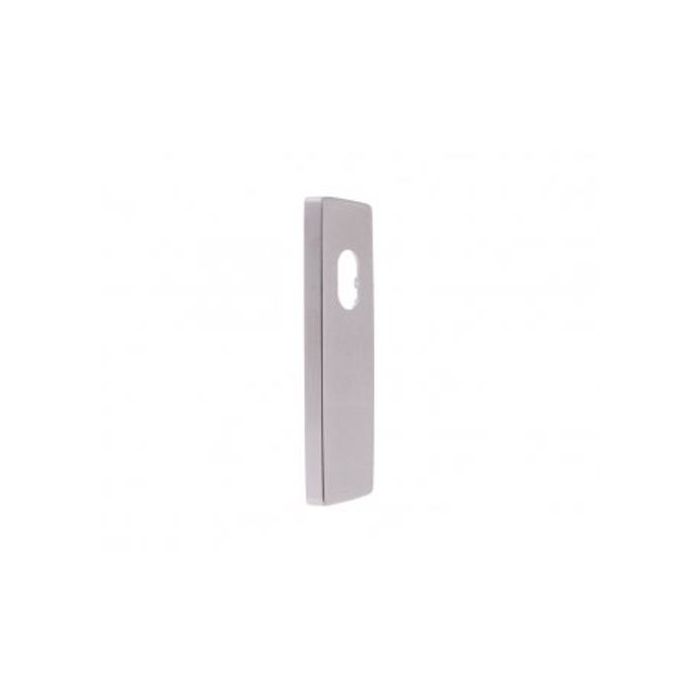

1800SC Lockwood External Plate with Cylinder Hole - Satin Chrome
1800SC is a Lockwood 1800 Series external plate with cylinder hole in satin chrome. It uses brass material, a concealed fixing arrangement and a square non-handed external plate format.
The plate is designed for timber door applications and suits Lockwood 3570 Series mortice locks. It measures 166 mm x 48 mm x 12 mm, includes fixing screws and carries a 25 year manufacturer's warranty plus fire, security and durability rating references.
Key Features
- Provides a satin chrome external plate with oval cylinder cut-out.
- Suits Lockwood 3570 Series mortice lock installations.
- Uses a non-handed square plate format for flexible door handing.
- Includes concealed fixing and fixing screws for a clean installed result.
- Combines brass construction with fire, security and durability rating references.
- Catalogue Family:
- LOCKING
- Product Model:
- 1800SC
- Product Type:
- Locking
- Dimensions:
- 166 mm x 48 mm x 12 mm
- Finish:
- Satin Chrome (SC)
- Material:
- Brass
- Cylinder Cut-Out Profile:
- Oval
- Fixing:
- Concealed fixed; fixing screws included
- Handing:
- Non-handed
- Suitable Door Type:
- Timber doors
- Max Door Thickness:
- 45 mm
- Warranty:
- 25 years
- Ratings:
- Fire rated 4 hours; S3 Security and D3 Durability Rating AS4145.2-1993
