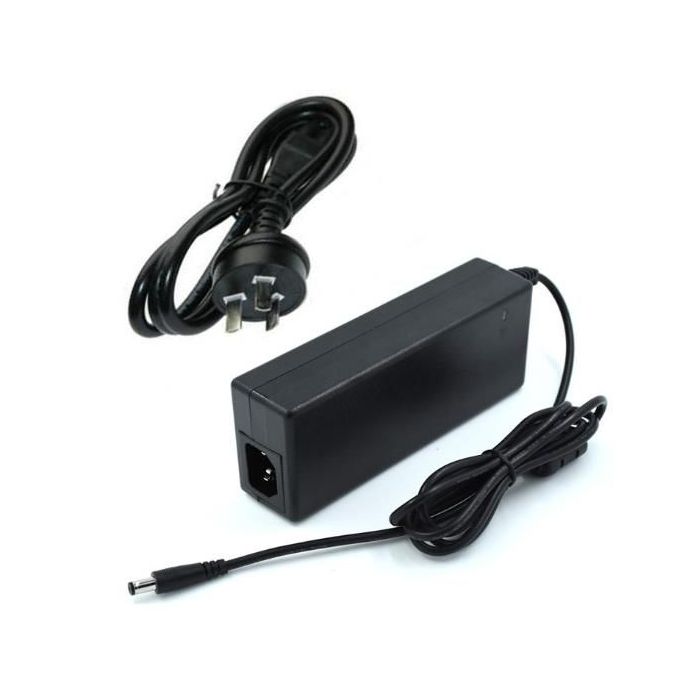

12VDC2.0A 12 VDC 2 A Inline Switch Mode Power Supply - 2.1 x 5.5 mm C+
The 12VDC2.0A is an inline switch mode power supply listed as model 12VDC2000/8. It provides a 12 V DC 2000 mA output, uses a 100-240 V AC 50/60 Hz input and uses a TE reversible 2.1 x 5.5 x 12 mm C+ DC plug set.
It is suited to compatible low-voltage equipment requiring a 12 V DC inline supply with a black case and lead set.
Key Features
- Switch mode design supports compact DC power delivery for compatible equipment.
- Wide AC input range suits common installation power conditions.
- Inline lead and DC plug detail support straightforward equipment connection.
- Black case and cord presentation keeps the supply visually unobtrusive.
- Compliance support confident product selection.
- Catalogue Family:
- POWER SUPPLY
- Product Type:
- Power Supply
- Product Model:
- 12VDC2000/8
- Input:
- 100-240 V AC, 50/60 Hz
- Output:
- 12 V DC, 2000 mA, 24 W
- DC Plug:
- TE reversible plug set to C+, 2.1 x 5.5 x 12 mm
- Input Lead:
- 240 V AC Fig 8 input
- DC Cord:
- 1.8 m lead-free cord
- Colour:
- Black
- Compliance:
- RoHS compliant; approved and manufactured to Australian standards; SGS-170175-EA
