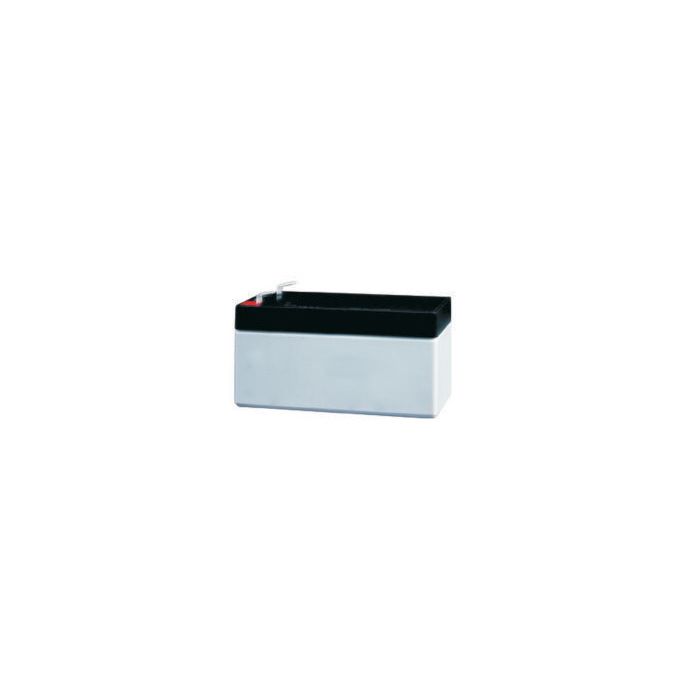

1213 CJ12-1.3 12V 1.3Ah VRLA Battery
The 1213 is a CJ12-1.3 valve-regulated lead acid (VRLA) battery with a 12 V nominal voltage and a 1.3 Ah capacity at the 20-hour rate. It is a general-purpose sealed rechargeable battery with a 5-year design life in float service and Faston F1 terminals.
The battery is designed for standby power and backup applications requiring a compact sealed lead acid battery. It supports both float and cycle charging and is manufactured to IEC and JIS standard references.
Key Features
- 12 V nominal voltage with a 1.3 Ah capacity at the 20-hour rate.
- Valve-regulated lead acid (VRLA) sealed rechargeable battery.
- 5-year design life in float service.
- Faston F1 terminals for compatible electrical connections.
- Supports both float and cycle charging applications.
- Catalogue Family:
- BATTERY
- Model:
- CJ12-1.3
- Voltage:
- 12 V
- Capacity:
- 1.3Ah at 20-hour rate to 1.75V per cell at 25 deg C
- Cells per Unit:
- 6
- Weight:
- Approx. 0.6 kg
- Dimensions:
- 97 mm L x 43 mm W x 58 mm H
- Max Discharge Current:
- 13 A for 5 seconds
- Internal Resistance:
- Approx. 95 milliohm
- Float Charging Voltage:
- 13.7 to 13.9 VDC per unit at 25 deg C
- Cycle Service Voltage:
- 14.6 to 14.8 VDC per unit at 25 deg C
- Recommended Maximum Charging Current:
- 0.39 A
- Terminal:
- Faston Tab 187 (F1)
- Product Type:
- Battery
