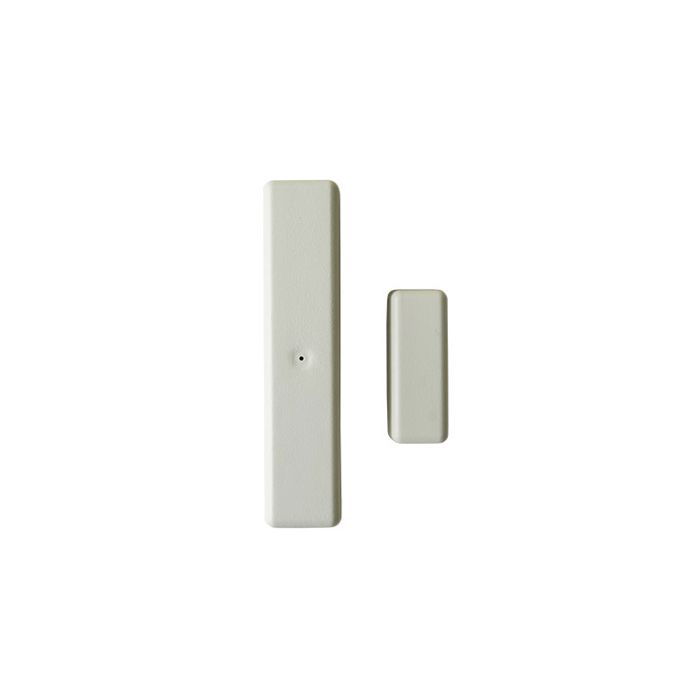

106-273 NESS-6020 Wireless Slim-Line Door and Window Sensor
The 106-273 is the NESS-6020 wireless slim-line door and window sensor. It is designed for narrow jamb door and window applications and uses Ness two-way wireless technology with signal acknowledgement, a unique TXID identifier and loop number transmission.
This sensor is suitable for M1 two-way wireless installations where a low-profile reed switch and magnet are needed on doors or windows. It supports field-installed front and back tamper detection, operational LED feedback, defined mounting gap and battery replacement details.
Key Features
- Slim-line body supports narrow jamb door and window mounting applications
- Two-way wireless technology provides acknowledgement feedback to the compatible transceiver
- Front and back tamper option supports more secure sensor installation
- LED feedback helps installers confirm transmission success during testing
- Defined reed gap and magnet dimensions support more accurate fitting on site
- Catalogue Family:
- ALARM SENSOR
- Model:
- NESS-6020
- Frequency:
- 915.5 MHz - 927.5 MHz frequency hopping
- Sensor Dimensions:
- 18(W) x 86(L) x 20(D) mm
- Magnet Dimensions:
- 14(W) x 38(L) x 15(D) mm
- Maximum Operating Gap:
- 12 mm
- Operating Temperature:
- -10 deg C to 40 deg C
- Relative Humidity:
- 5 - 95% non-condensing
- Battery:
- 3.6 V ER14250 lithium
- Txid Code:
- Over 1 million combinations
- Product Type:
- Alarm Sensor
