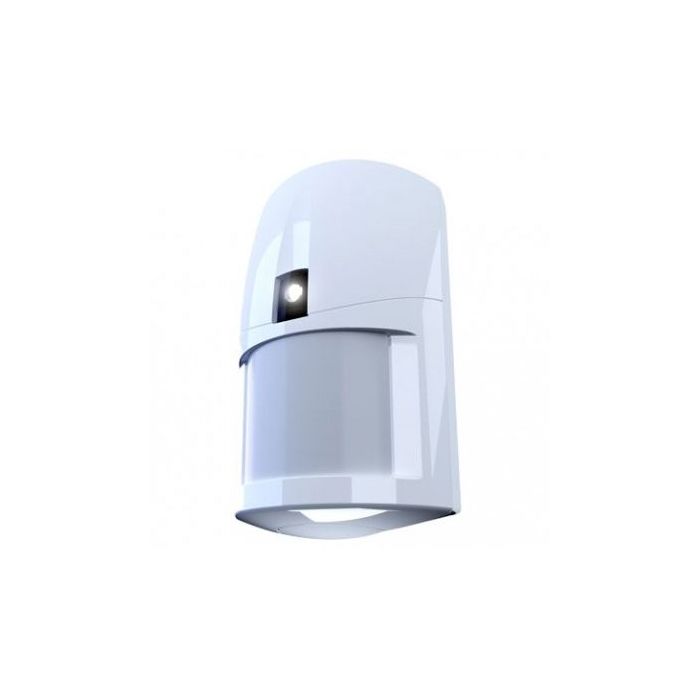

106-173 Ness LUX HW Quad PIR with Nightlight
The 106-173 is the Ness LUX HW hardwired security and automation PIR with a white LED motion-activated night-light. It features quad element detection, up to 15 m x 15 m coverage, selectable Standard and Pet Aware modes, digital pulse count and adjustable digital range.
The detector supports hardwired security and automation systems with Fast Out, Sens Out and Light In functions, front cover tamper protection, sealed electronics and 10-15 V DC operation.
Key Features
- Hardwired quad element PIR with integrated white LED motion-activated night-light.
- Selectable Standard and Pet Aware modes with an adjustable sensor mask.
- Supports Fast Out, Sens Out and Light In functions for security and automation integration.
- Includes a vertical anti-creep zone and quad element detection.
- Selectable digital range and digital pulse count settings.
- Wiring:
- Hardwired
- Power:
- 10-15Vdc
- Product Type:
- Alarm Sensor
