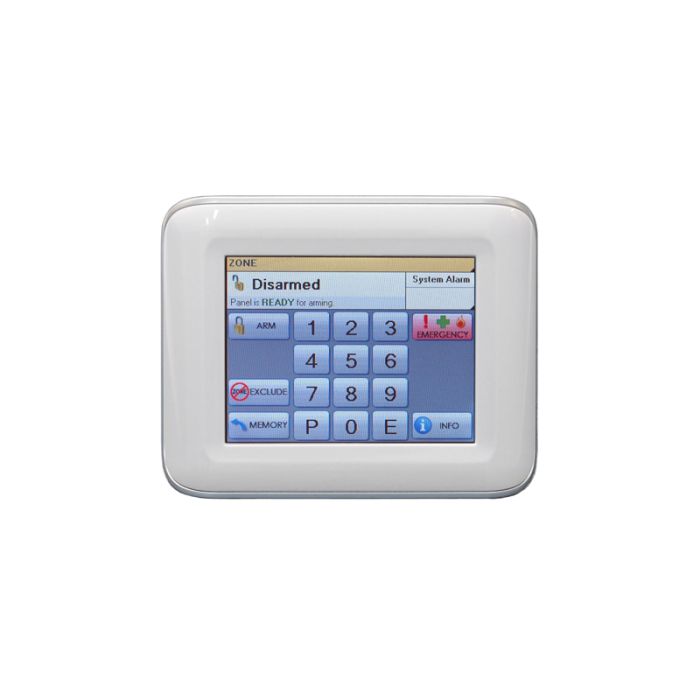

106-101 Ness Navigator Touch Screen Keypad Gen2
The 106-101 Ness Navigator Touch Screen Keypad Gen2 is a 3.5 inch colour LCD touchscreen keypad for Ness alarm control panels. It is compatible with DPlus, D8/D16XCEL and D8X/D16X panels version 7 and later, with operation over the Ness two-wire data bus.
It suits installations where the alarm interface needs plain-English prompts, zone-name display and touchscreen operation rather than a basic keypad. The Navigator keypad gives both users and installers a more visual interface for arming, disarming, outputs and emergency-alarm functions where enabled.
Key Features
- Improves daily alarm operation through a colour touchscreen interface
- Helps users understand zones and prompts in plain English
- Supports installer handover with clearer on-screen guidance
- Fits multiple compatible Ness panel families
- Allows larger Navigator installations with up to four units per panel
- Catalogue Family:
- SYSTEM COMPONENTS
- Model:
- Ness Navigator Touch Screen Keypad Gen2
- Dimensions:
- 108 mm W x 86 mm H x 15 mm D
- Display Type:
- 3.5 inch colour LCD
- Display Resolution:
- 320 x 240
- Touch Screen:
- Touch sensitive surface
- Compatibility:
- DPlus, D8/D16XCEL and D8X/D16X panels version 7 and later
- Maximum Keypads:
- 4 Navigator touch keypads per panel
- Operating Voltage:
- 12 V DC from control panel
- Current Draw:
- 25 mA at 50% backlighting, 50 mA at 100% backlighting
- Data:
- 2 wire proprietary Ness data bus
- Product Type:
- System Components
