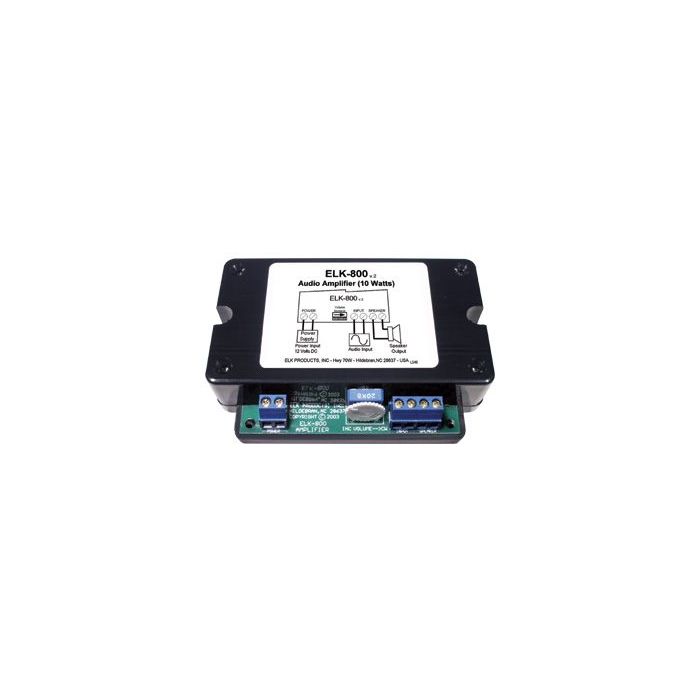

101-265 Ness ELK-800 10 Watt Audio Amplifier
The 101-265 is the Ness ELK-800 compact 10 W audio amplifier for paging and public-address applications. It uses 12 - 24 V AC or DC power input, adjustable output from an onboard volume control and supports ordinary horn or cone speakers.
This amplifier is useful for short-duration paging, telephone-system paging outputs, amplified telephone ringer use and other low-voltage audio distribution tasks. Its compact enclosure and low-voltage wiring requirements make it practical for centrally mounted or remotely installed audio support in security and automation systems.
Key Features
- Compact 10 W amplifier supports paging and announcement applications
- 12 - 24 V AC or DC input gives flexibility with low-voltage power sources
- Built-in volume control allows output adjustment during setup
- Supports ordinary horn or cone speakers without 25 V or 70 V line transformers
- Low-voltage wiring requirements suit remote security and automation installations
- Catalogue Family:
- PIRS
- Model:
- ELK-800
- Output Rating:
- 10 W
- Power Input:
- 12 - 24 V AC or DC
- Speaker Load:
- 2 - 16 ohms
- Current Draw:
- 50 - 800 mA depending on load and volume setting
- Input Impedance:
- 1000 ohms nominal
- Enclosure Size:
- 111.8 x 76.3 x 29.2 mm
- Primary Use:
- Short-duration paging applications
- Product Type:
- PIR Sensor
