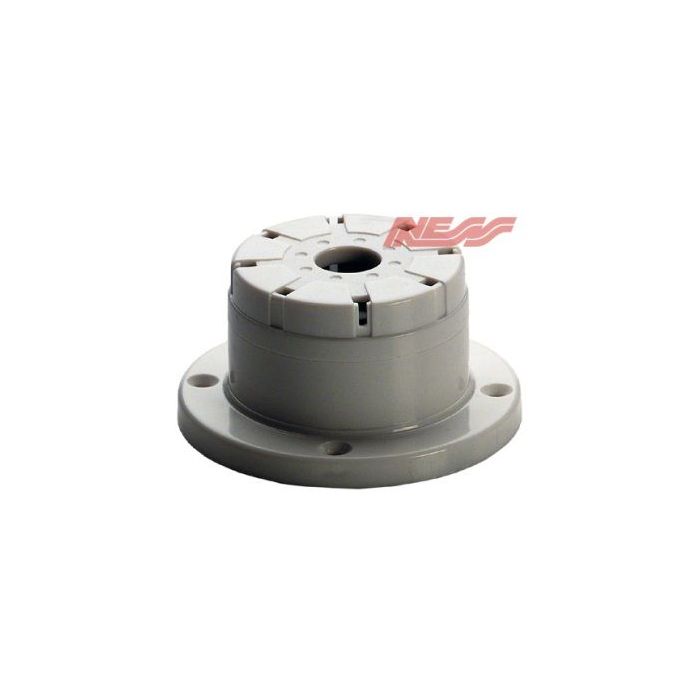

100-238 Ness 12V Top Hat Screamer
The 100-238 is a Ness 12 V internal screamer known as the 12V Top Hat Screamer.
Key Features
- Warble tone and high sound-pressure specification support clear audible alarm indication.
- Compact top-hat format helps fit internal alarm hardware layouts.
- ABS plastic construction and white colour are listed in the specification.
- 12 V DC nominal operation suits compatible low-voltage alarm circuits.
- Wire lead and dimensional data help installers plan placement.
- Catalogue Family:
- SYSTEM COMPONENTS
- Product Type:
- SYSTEM COMPONENTS
- Tone:
- Warble
- Sound Pressure Level:
- 120 dB +/-5 dB @ 30 cm
- Dimensions:
- 85(Dia) x 40(H) mm
- Construction:
- ABS plastic
- Wire Leads Length:
- 400 mm
- Operating Voltage:
- 12 V DC NOMINAL, 6 V DC MIN TO 15 V DC MAX
- Current Draw:
- 130 MA @ 12 V DC
- Colour:
- WHITE
