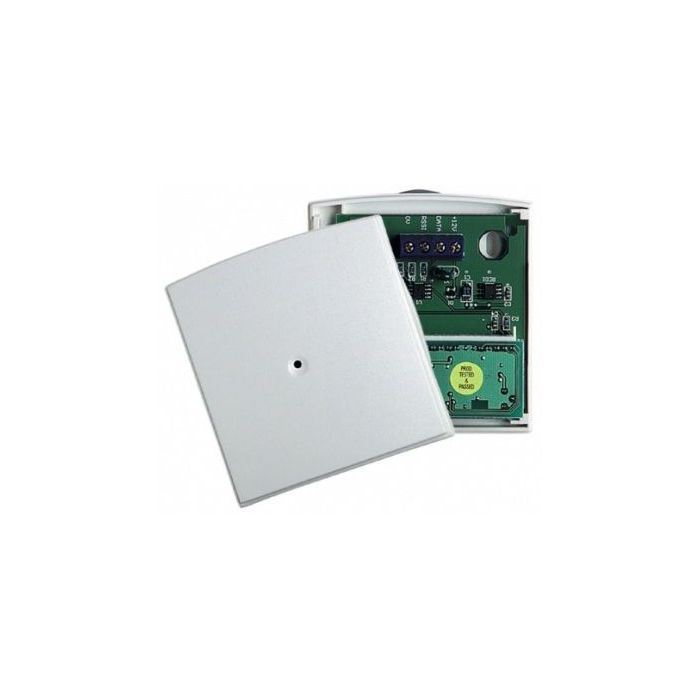

100-200 Ness Radio Interface 304MHz
The 100-200 is the Ness Radio Interface, a serial radio receiver for enabling radio functions on compatible Ness D8/D16 X Series and XCEL Series control panels. It connects to the control panel using the supplied 4-wire loom and plug.
The interface operates at 304 MHz, supports Ness one-way radio transmitters and receives 12 V DC power through the control panel connection.
Key Features
- Enables radio functions for compatible Ness D8/D16 X Series and XCEL Series control panels.
- Supplied 4-wire loom and plug.
- Supports installation up to 50 metres from the control panel.
- Compatible with Ness one-way radio transmitters.
- Supports an optional external antenna.
- Catalogue Family:
- SYSTEM COMPONENTS
- Product Type:
- System Components
- Dimensions:
- 78(h) x 73(w) x 27(d) mm
- Panel Compatibility:
- Ness D8x/D16x, D8XCEL/D16XCEL
- Transmitter Compatibility:
- All Ness one way radio transmitters
- Programming:
- Not applicable; programming via control panel
- Operating Voltage:
- 12 V DC supplied via 4-wire connection to panel
- Outputs:
- Serial connection to control panel, cable and plug supplied
- Radio Frequency:
- 304 MHz
